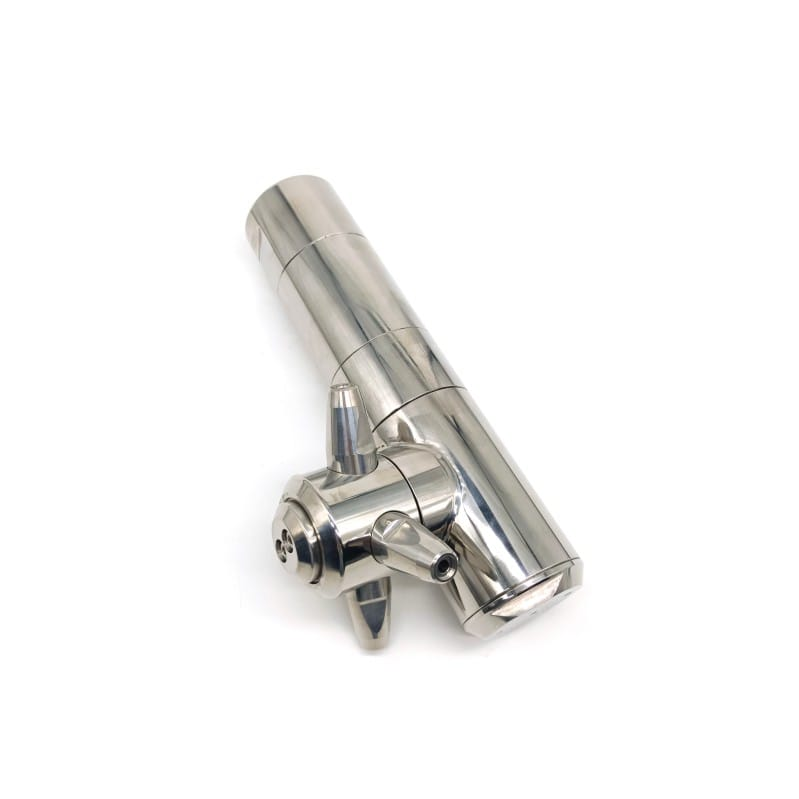

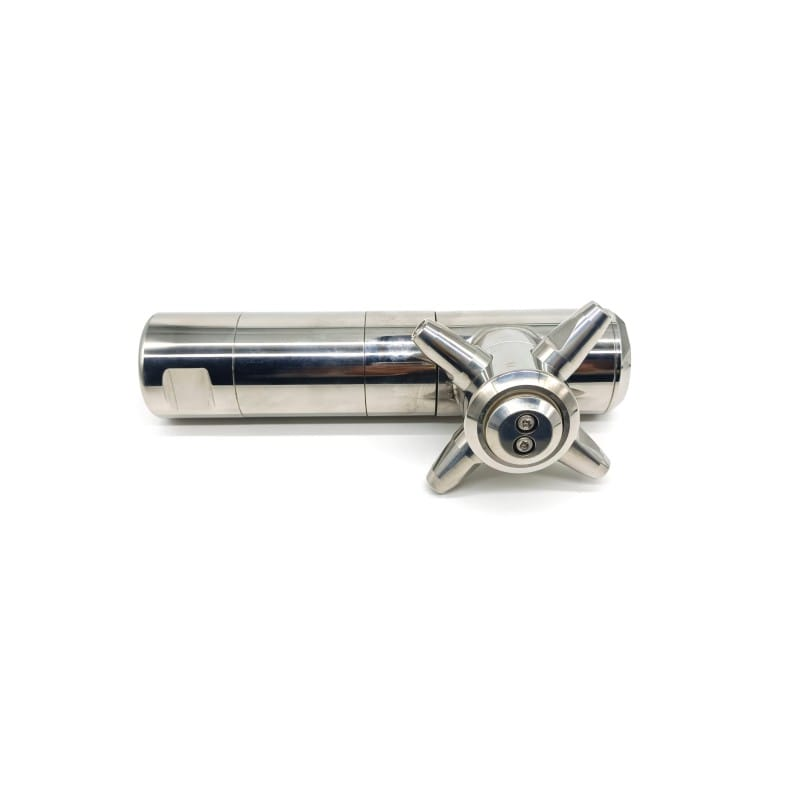

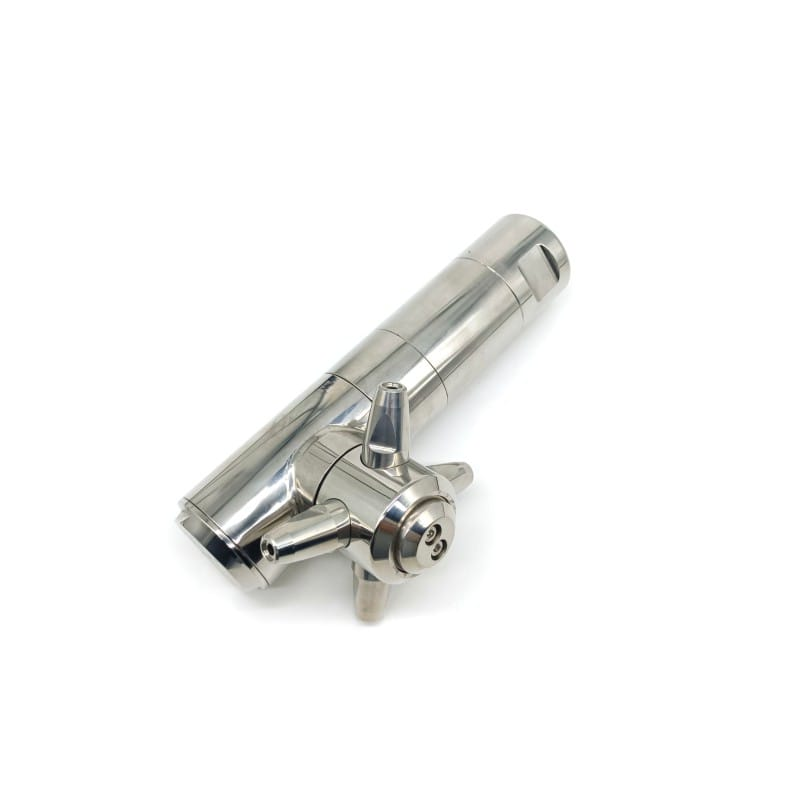

05 3D Rotating Cleaning Ball

05 3D Rotating Cleaning Ball
The spray ball is driven by the cleaning fluid, which causes the internal turbine to rotate. The turbine, in turn, drives an internal reduction mechanism; this gear assembly operates along a predetermined trajectory—executing both self-rotation and orbital motion—to achieve comprehensive, 360-degree cleaning with no dead spots.
Tel: +86 13360665626
E-mail: xinyuepqina01@outlook.com
Contact us

Product Description

Category: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: 3D Rotary

Connection: 3/4" BSPT

Material: 316L, PTFE

Max. Cleaning Diameter: 29.86 ft

Max. Flow Rate (L/min): 135

Max. Pressure (bar): 15

Max. Temperature: 200°F

Min. Inlet Diameter: 4.13"

Min. Pressure (bar): 3.4
